Wind sensors

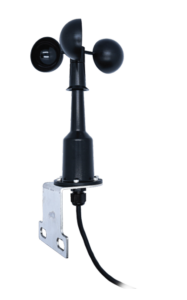

PESSL INSTRUMENTS WIND SPEED

windspeed

Order number: : 600247

PI mechanical Wind Speed Sensor is a durable, cup-type anemometer designed for dependable wind speed measurement in agricultural and outdoor environments. Its proven three-cup design ensures stable and accurate readings even in changing weather conditions, helping farmers and system integrators reliably monitor average wind speed over a defined period for irrigation control, crop protection, weather stations, and farm management systems.

FEATURE VALUE
Range
0 to 30 m/s, structural integrity up to 60 m/s
Tolerance
≤5 m/s: ±0.5 m/s
>5 m/s: ±10%
Sensor
Three hemispherical 40 mm wide cups, on 12 cm diameter wheel
Turning Factor
75 cm for one full rotation
Threshold
1.1 m/s
Threshold
1.1 m/s
Sensor output
AC sine wave signal induced by rotating magnet on cup wheel shaft.
Output frequency
1 cycle per cup wheel revolution. 0.75 m/s per Hz
Dimensions
Height: 23 cm, Width: 11 cm
Weight
0.28 kg
Cable length
3 meters, shielded, UV and water resistant
Calibration
Precalibrated from the factory, optional manual calibration via METOS 5 terminal menu

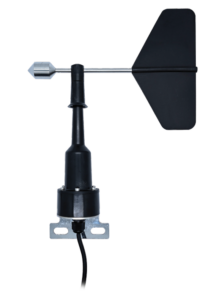

PESSL INSTRUMENTS WIND DIRECTION

direction

Order number: : 600246

The Pessl Instruments Wind Direction sensor provides reliable and precise measurement of wind direction for agricultural and other outdoor applications. Its balanced wind vane design ensures stable alignment with airflow even at low wind speeds, delivering accurate directional data across the full 360° range. The sensor comes precalibrated from factory, and METOS 5 supports additional calibration by the installer on the final installation location.

FEATURE VALUE
Range
0 to 359 Degrees
Tolerance
5 Degree
Sensor
Wind vane with counterweight
Turning point
Minimum 1.1 m/s
Dimensions
Height: 27.5 cm, Width: 21.5 cm
Weight
0.40 kg
Cable length
3 meters, shielded, UV and water resistant
Calibration
Precalibrated from the factory, optional manual calibration via METOS 5 terminal menu

RM Young Wind Monitor

rm young_wind_monitor

Order number: 600129

The wind monitor combines wind speed and wind direction. It is constructed of a four-blade helicoid propeller for highly accurate wind speed measurement with integrated wind direction sensor. It measures peak values.

FEATURE VALUE
Wind Speed – Range
0-100 m/s (224 mph), 0- 360°
Accuracy
Wind Speed: ±0.3 m/s (0.6 mph) or 1% of reading
Wind Direction: ±3 °
Operating temperature range
-50 to 50 °C
Threshold
Propeller: 1.0 m/s (2.2 mph)
Vane: 1.1 m/s (2.4 mph)
Signal output
Wind speed: magnetically induced AC voltage, 3 pulses per revolution.
1800 rpm (90 Hz) = 8.8 m/s (19.7 mph)
Wind direction: DC voltage from conductive plastic potentiometer − resistance 10K Ω, linearity 0.25%, life expectancy − 50 million revolutions
Power Requirement
Potentiometer excitation: 15 VDC maximum
Dimensions
37 cm (14.6 in) H x 55 cm (21.7 in) L,
Propeller: 18 cm (7 in) dia.
Mounting: 34 mm (1.34 in) dia. (standard 1 inch pipe)
Weight
1.0 kg
