iMETOS RADIONODE INTERFACE (available on special demand only)

RadioNode

iMETOS RadioNode is a small, wireless, battery-powered datalogger for in-field measurement of soil moisture, temperatures, rain, flow rate, leaf wetness, relative humidity and other parameters. iMETOS RadioNode sends all sensor readings in real-time through an interactive star topology network back to our base station. From the base station, the data is uploaded to the web via a cellular network (GPRS, UMTS, WiFi). All data is available through FieldClimate platform. To connect iMETOS RadioNode to the iMETOS 3.3, RF Access Point is needed.

There are two variations:

iMETOS RadioNode Watermark/METER

RadioNode Watermark with inputs for:
1. Rain gauge 0.2 mm (0.01 inch) / Water meter
2. Temperature sensor (WMTEMP)
3.-6. Watermark sensor
7.-10. PI54-D

Power Supply: One 3.6V Li-Ion primary cell with 19.000mAh (7 years of operation)

SD51 iMETOS RadioNode Drill & Drop

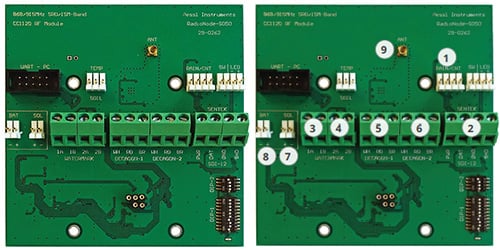

Drill&Drop_Interface

SD51 iMETOS RadioNode Drill & Drop with inputs for:
1. Rain gauge 0.2 mm (0.01 inch)
2. Sentek Drill & Drop probe
3.-4. Watermark sensor
5.-6. PI54-D
7. Solar panel
8. 6V, 4.5Ah battery connector
9. External antenna

Power Supply: Solar panel and 6V Pb 4.5Ah battery

FEATURE VALUE
Housing
UV resistant polycarbonate plastic (Protection class IP67)
Dimensions without sensors
30 cm L x 16 cm W x 19 cm H
Weight without sensors
1.6 kg
Model/Type
Texas Instruments RF CC1120 module with integrated ultra low power sub-GHz; transceiver module; integrated crystal, internal voltage regulator, build in antenna global; using free ISM bands, ISM Band 915 MHz: USA, Canada, Australia, Israel etc.; ISM Band 868 MHz: Europe; ISM Band 433 MHz: Asia
Expected range
300 to 400 meter (1200 to 1400 ft.) at +10 dBm, broad line of sight, when mounted on level ground at least 3 m (10 ft.) high and above crops, grass, bushes or foliage

CHAIN NODE INTERFACE FOR 3 PESSL INSTRUMENTS SENSORS

ChainNode for 3 PI sensors

Order number: 600069 / 900052 / 900173

This Interface allows the connection of up to 3 PI54-D sensors to an METOS® weather station.

The Interface can be an External box for iMETOS 3.3 (ECH870EXT).

You can connect:

  • Vacuum Tensiometer
  • Water Level Sensor
  • Pipe Water Pressure Sensor
  • PI54-D

CHAIN NODE INTERFACE FOR 2 PESSL INSTRUMENTS SENSORS & 2 WATERMARK SENSORS & 1 SOIL TEMPERATURE SENSOR

ChainNode_2PI_2WM-min

Order number: 600068 / 900051 / 900174

This Interface allows the connection of up to 5 soil sensors to a METOS® weather station. It is possible to connect 2 PI54-D Sensors, 2 Watermark Sensors and 1 Soil Temperature Sensor.

The Interface can be an External box for iMETOS 3.3 (ECH871EXT).

You can connect:

  • 2 pieces of Watermark sensor
  • 1 piece of Soil Temperature (WMTEMP)
  • The following PI sensors:
    • Vacuum Tensiometer
    • Water Level Sensor
    • Pipe Water Pressure Sensor
    • PI54-D

CHAIN NODE INTERFACE FOR 1 PESSL INSTRUMENTS SENSOR & 4 WATERMARK SENSORS & 1 SOIL TEMPERATURE SENSOR

CHAIN NODE INTERFACE FOR 1 PESSL INSTRUMENTS SENSOR & 4 WATERMARK SENSORS & 1 SOIL TEMPERATURE SENSOR-min

Order number: 600167 / 900057 / 900175

This Interface allows the connection of up to 6 soil sensors to an METOS® weather station. It is possible to connect 1 PI54-D sensor, 4 Watermark sensors and 1 soil temperature sensor.

The Interface can be an External box for iMETOS 3.3 (ECH874EXT).

You can connect:

  • Four pieces of Watermark sensor
  • One piece of Single Soil Temperature
  • One piece of the following PI sensors:
    • Vacuum Tensiometer
    • Water Level Sensor
    • Pipe Water Pressure Sensor
    • PI54-D

SDI12 CHAIN NODE INTERFACE WITH 2 iMETOS AC OR SENTEK CONNECTORS

extension_SDI12_v2_2022
Order number: 600150 / 900105 This Interface allows the connection of up to 2 iMETOS AC or 2 Drill & Drop probes. The Interface can be an External box for iMETOS 3.3 (SDI12_Chain). You can connect:
  • two pieces of:
    • iMETOS AC different types
    • Sentek Drill & Drop different types
